Equipment & Attachments

Specialists

Please Contact for Pricing

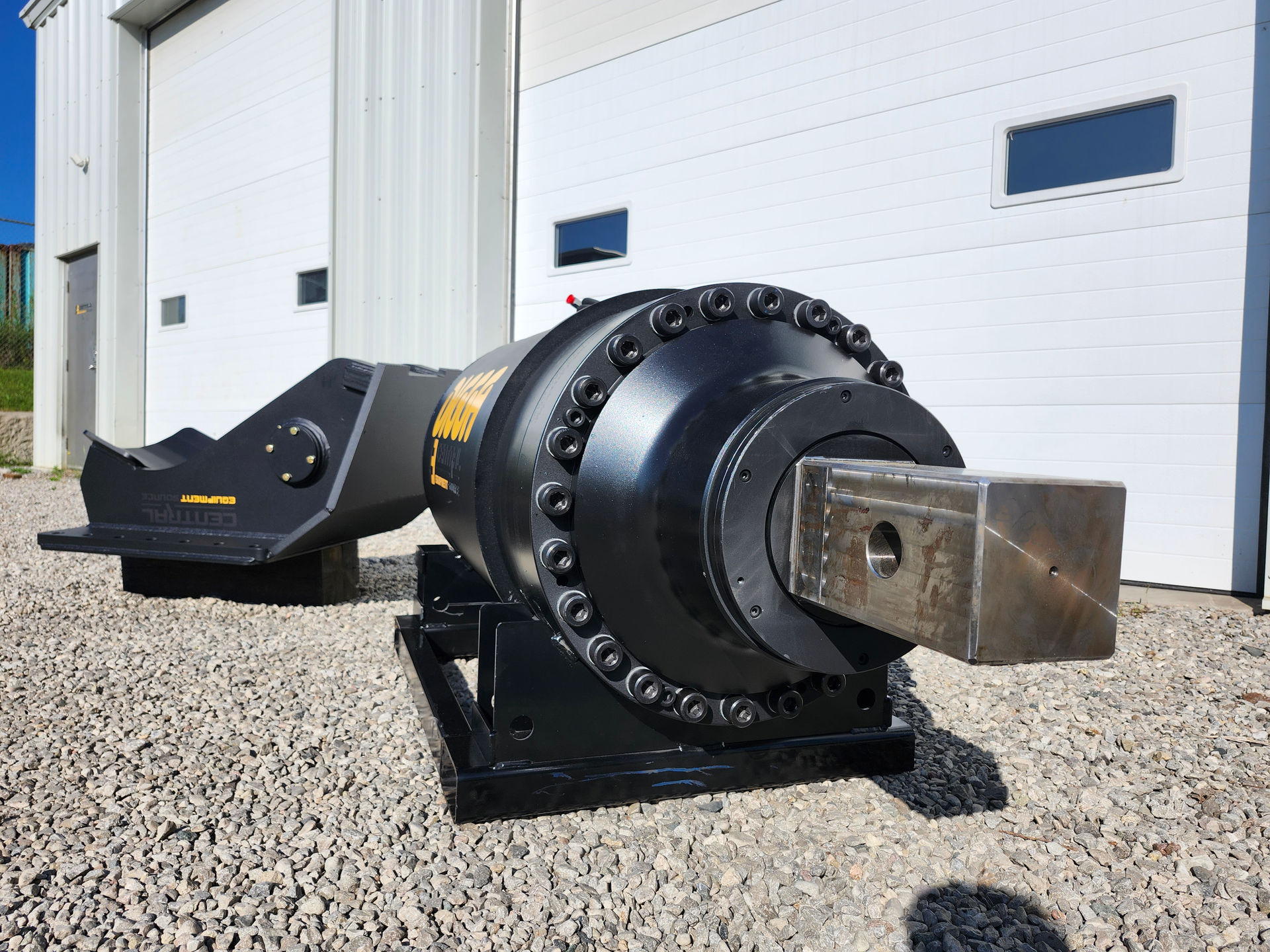

Digga UD-300-T3
TWO SPEED
Financing Options Available
The Digga Ultra Drive range is the ultimate in ultra high torque performance up to 230,000ft-lbs. Providing the most versatile selection of supreme planetary drives with greater power and speed. Designed for screw piling and ground anchor installation. Digga’s innovative compact design and industry leading innovations make this range of drive units the industry’s first choice for anchored applications. With world leading technology as standard inclusions such as the Energy Control Valve (ECV) which prevents rapid decompression of oil caused by pile kick-back, and a built-in Pressure Relief Valve (PRV) to give you peace of mind that your investment is protected.
Machine Type:
Drive Type:
Max Torque (ft-lbs.):
Max Pressure:
Max Horsepower:
Recommended Flow:
Output Shaft:
Case Drain Required:
Pressure Relief Valve:
Energy Control Valve:
Full Size Excavator
TWO SPEED
226,500
3500 PSI
200
100GPM
150MM SQ
YES
INCL
INCL

FEATURES

  • 2 Speed drive system

  • Compact high torque Digga manufactured gearbox

  • The highest volumetrically efficient motor available - Maintain consistent & efficient pile installation

  • Extreme duty shaft locking system

  • No complex hoses, valving or filtration

  • Built-in Pressure Relief Valve standard

  • Energy Control Relief Valve

  • 1yr Gearbox & 1yr Motor Warranty

SPECIFICATIONS

  • Overall Length: from 64.6"

  • Diameter: from 26.4"
